產品：PD22
產品特性:
■特點：
☆不通孔回轉油缸，短型，高速。
☆油缸采用優(yōu)質鋁合金材料，體積小，重量輕，高速運轉時慣性小，主軸平穩(wěn)性好，安裝時可用后端螺釘鎖緊。
☆是數控車床的理想動力源。
■Specificity:
☆The cylinders are non-through-hole rotating hydraulic cylinders with short-type high speed.
☆The cylinders are made of high quality aluminium alloy, with small volume, light weithg , high speed, low moment of inertial and high stability of the spindle while high-speed rotating and tightened by back bolts.
☆It is the ideal power source of the CNC lathes.
產品詳情

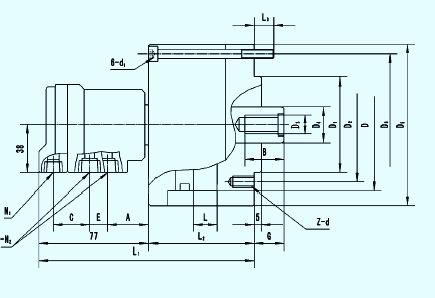

■尺寸參數 Dimension Parameters
|
規(guī)格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
z-d
|
d1
|
B
|
G
|
L1
|
L2
|
L3
|
A
|
E
|
C
|
N1
|
N2
|
|
max
|
min
|
|
PD2275
|
75
|
65
|
90
|
M20
|
30
|
107
|
90
|
6-M8
|
M8
|
35
|
45
|
30
|
134
|
57
|
12
|
31
|
10
|
25.5
|
Rc1/4
|
Rc3/8
|
|
PD22100
|
100
|
80
|
100
|
M20
|
30
|
132
|
115
|
6-M10
|
M8
|
35
|
45
|
25
|
149
|
72
|
12
|
31
|
10
|
25.5
|
Rc1/4
|
Rc3/8
|
|
PD22125
|
125
|
110
|
130
|
M24
|
35
|
160
|
140
|
6-M12
|
M8
|
45
|
50
|
25
|
159
|
82
|
12
|
31
|
10
|
25.5
|
Rc1/4
|
Rc3/8
|
|
PD22150
|
150
|
110
|
130
|
M30
|
45
|
190
|
170
|
12-M12
|
M10
|
45
|
55
|
25
|
172
|
95
|
16
|
31
|
10
|
25.5
|
Rc1/4
|
Rc3/8
|
|
PD22200
|
200
|
120
|
145
|
M36
|
55
|
245
|
220
|
12-M16
|
M10
|
60
|
70
|
35
|
193
|
116
|
21
|
31
|
10
|
25.5
|
Rc1/4
|
Rc3/8
|
■性能參數 Characteristic Parameters
|
規(guī)格
Size
|
活塞有效面積㎝2
Piston effective area
|
活塞行程Lmax
Piston stroke
|
最大使用壓力Mpa
Max. acting pressure
|
極限轉速r/min
Max. speed
|
最大推拉力kN
Max. draw pull
|
凈重Kg
Net WT
|
|
PD2275
|
44.2
|
15
|
4.0
|
6000
|
15.9
|
2.8
|
|
PD22100
|
78.5
|
20
|
4.0
|
6000
|
28.3
|
4.3
|
|
PD22125
|
122.7
|
25
|
4.0
|
6000
|
44.2
|
6.8
|
|
PD22150
|
176.7
|
30
|
4.0
|
5500
|
63.6
|
9.4
|
|
PD22200
|
314.1
|
35
|
4.0
|
5500
|
113.1
|
15.3
|
|
